Clean Room Display Unit CDU

Clean Room Display Unit CDU

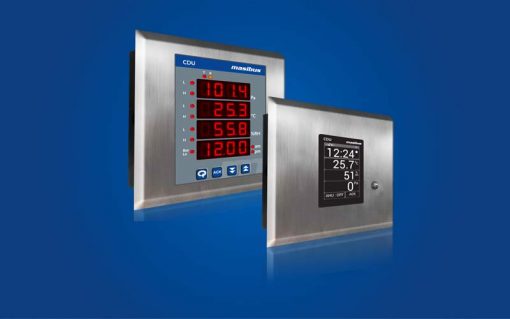

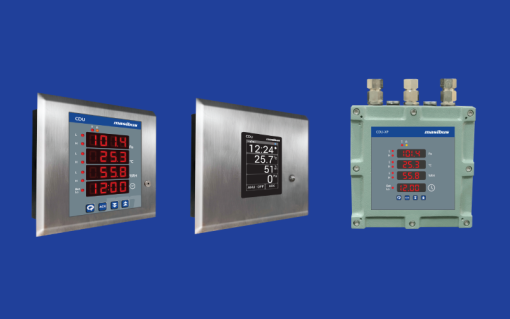

Masibus model CDU Clean Room Display Unit is designed to measure and display Temperature, Humidity and Differential Pressure in one compact enclosure.

CDU Clean Room Display Unit accepts analog input fromTemperature, Humidity and Differential pressure sensors, optionally the sensors for all 3 parameters are integrated inside for ease of use & installation. CDU is also available in Remote sensor with 10 meter cable option for RH + T measurement CDU is available in two display options either 4 digit 0.56” Red seven segment displays to Indicate Temperature, %RH and DP individually or 3.5″ TFT LCD, CDU with LED display option has individual LEDs for Status indication for all three channels. High and low alarm LED indications are settable using programming modes. One no potential free Digital Input for door status available in CDU with LCD option. CDU has inbuilt buzzer for audible process value violation. Data acquisition can be done on SCADA/ PLC application through RS485 using MODBUS protocol.

CDU-LED version optionally also accepts Humidity and Temperature input through wireless zigbee network from Masibus make HT16Ew Humidity & Temperature Transmitter. Designed using proven micro-controller technology, this Clean Room Display Unit has been validated to perform accurate and reliable performance in harsh field environment

Masibus model CDU Clean Room Display Unit,Clean room display indicator is designed to measure and display Temperature, Humidity and Differential Pressure in one compact enclosure.

CDU Clean Room Display Unit accepts analog input fromTemperature, Humidity and Differential pressure sensors, optionally the sensors for all 3 parameters are integrated inside for ease of use & installation. CDU is also available in Remote sensor with 10 meter cable option for RH + T measurement CDU is available in two display options either 4 digit 0.56” Red seven segment displays to Indicate Temperature, %RH and DP individually or 3.5″ TFT LCD, CDU with LED display option has individual LEDs for Status indication for all three channels. High and low alarm LED indications are settable using programming modes. One no potential free Digital Input for door status available in CDU with LCD option. CDU has inbuilt buzzer for audible process value violation. Data acquisition can be done on SCADA/ PLC application through RS485 using MODBUS protocol.

CDU-LED version optionally also accepts Humidity and Temperature input through wireless zigbee network from Masibus make HT16Ew Humidity & Temperature Transmitter. Designed using proven micro-controller technology, this Clean Room Display Unit has been validated to perform accurate and reliable performance in harsh field environment.

It can be used in Pharma EMS system for clean room application as DP indicator, humidity indicator, temperature indicator with DNP as a communication protocol.
