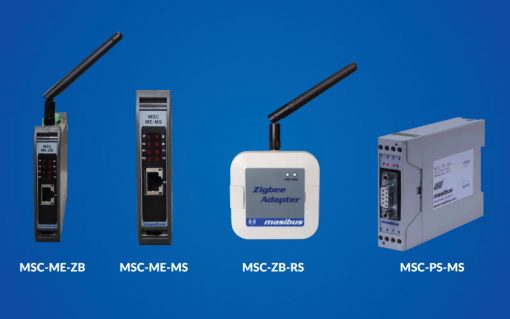

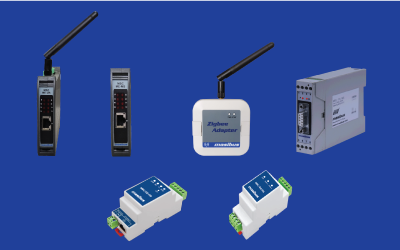

Masibus MSC Converter
The Masibus Smart Converter series addresses a market segment that sets the focus on cost savings & space saving compact design. The economic design combined with its master-slave conversions makes MSC an attractive gateway/converters in terms of price, universality and flexibility.
This MSC family converts two industrial protocols simply and efficiently into each other. Be it a simple serial RS-485 bus, Ethernet, classic Profibus or Wireless-ZigBee, MSC provides a common platform for a transparent conversion of automation protocols. It smoothly integrates into the existing field networks in plant with both wired and wireless network standards. MSC is configured and diagnosed by a dedicated configuration tool (MSC Studio).
MSC Converter design combines the two network interfaces on a DIN-Rail & Wall mount housing. LED indicators reveal the status information for power & bus communication. The protocol conversions are pre-programmed and loaded as dedicated firmware into the device.
Masibus ZigBee Adapter delivers wireless connectivity to electronic devices through advanced mesh network. It provides wireless connectivity to replacing existing wired RS-485 network of the sensors, controllers and other serial devices. It works both as a router and a co-ordinator/aggregator/master.
Features
MSC-RE-RS
- Supports max. upto 247 Modbus RTU slave IDs.
- No. of RS-485 ports (Modbus RTU master): 1 No.
- Modbus TCP/IP (ModNet) – 10/100Mbps- Auto detecting
- No. of client supports on Modbus TCP/IP (ModNet) – Up to 4 No.
- No. Modbus query configuration
MSC-RS-RS
- RS-485 half duplex communication
- Auto baud rate detection
- Signal boost up to 1200m (Depends upon baud rate)
- Maximum 31 RS-485 nodes per repeater
- 120 termination resistor selection
- Isolation 1500VAC RMS
MSC-PS-MS
- Integrates multiple Modbus RTU slaves into Single Profibus Network
- Fast cyclic data communication between Master and Slave
- Supports up to 100 commands or 512 Read & Write Registers on MODBUS
- Diagnostic and configuration via RS232
- Maximum of 244 bytes cyclic input and output data on Profibus DP Slave
MSC-ME-MS
- Supports max upto 64 Modbus RTU Slave devices on RS485
- No of RS485 Ports (Modbus RTU Master): 2 (Only one active at a time)
- Modbus TCP/IP (ModNet) – 10/100Mbps- auto-detecting
- No. of Client supports on Modbus TCP/IP (ModNet) – Up to 15
- Supports upto 192 commands or 2048 Read/1024 Write Registers on MODBUS.
MSC-ME-ZB
- Supports upto 64 Modbus RTU Slave devices on RS485 & ZigBee
- Number of Master Ports (Modbus RTU): 1 RS485 (Wired) &
- 1 ZigBee (Wireless) – Only one active at a time
- ZigBee Topology: Point-Point/Point-Multipoint/Mesh
- Modbus TCP/IP (ModNet) – 10/100Mbps- auto-detecting
- No. of Client supports on Modbus TCP/IP (ModNet) – Up to 15
- Supports up to 192 commands or 2048 Read/1024 Write Registers on MODBUS.
MSC-ZB-RS
- Number of Ports: 1 RS485 (Wired) & 1 ZigBee (Wireless)
- ZigBee Topology: Point-Point/Point-Multipoint/Mesh
- Router/Co-ordinator/ Aggregator/Master/Slave configuration through MSC studio
- MSC-ZB-RS (Router/Slave) can connect to MSC-ME-ZB or MSC-ZB-RS (Co-ordinator/Master)
- Wireless range extension possible through router
Applications
- Data sharing between PLC, DCS, Controllers, Inverters and other network devices
- Operator Interfaces
- Industrial / Factory / Process/Building Automation
- Intelligent Field Sensors and Actuators Communication
- Solar String / Environmental Monitoring
Industries
- Automation
- IT
- IIoT
- Industry 4.0
